CEDRA-AVwaterTM

Water Distribution / Water Quality Modeling

CEDRA-AVwaterTM enables the engineer to define the geometric configuration, establish the materials inventory of a water distribution network, introduce supply and demand loads, perform analyses and display pertinent results in graphic and/or tabular format. Storage tanks, pressure regulating, sustaining and open/close valves, pumps, meters, etc. can be included in the water distribution model. Extended period simulations which adjust liquid levels in tanks over a user-specified simulation period may be modeled. AVwater users can perform Fire Flow analyses with node and pipe summary tables being created facilitating the system adequacy determination, as well as, Dynamic Water Quality modeling which tracks the fate of a dissolved substance flowing through the network over time. CEDRA AVwaterTM offers the engineer an ArcView® GIS and ArcGIS® interface to the U.S. Environmental Protection Agency's EPANETTM Version 1 and Version 2 modelers, thereby integrating modeling and GIS technology. The University of Kentucky's KYPIPETM modeler is not supported nor provided.

In addition to the modeling tools, CEDRA AVwaterTM provides functionality for editing attribute data using customized dialog boxes. The CEDRA-DataEditorTM extension, which is included with CEDRA AVwater, enables the user to identify the specific themes and attributes which the user can edit. Quality control and data verification tools are included with the CEDRA-DataEditor extension to ensure that the database is properly maintained. The customized dialog boxes, which the user defines, are established without having the user write any Avenue, Visual Basic or other programming language software. With a simple point and click, CEDRA DataEditor users are able to edit and maintain their tabular information without having to start and stop table editing sessions.

CEDRA AVwater when utilized with any of CEDRA's geometry software, CEDRA AVcad, CEDRA AVcogo, CEDRA AVland or CEDRA AVparcel, provides the user a package that integrates Modeling, Mapping, Data Maintenance and GIS in a single common desktop environment. As such, the need to move data from one software environment to another is eliminated because ArcView is used as the common desktop environment. CEDRA AVwater users are able to begin and end projects entirely in ArcView.

ArcGIS users should check out the CEDRA-ArcView3-Tools toolbar. This toolbar offers a number of selection tools which will increase productivity by at least 30%. This is accomplished by reducing the number of clicks that are made in performing typical selection operations. ArcGIS users who have previously worked with ArcView GIS will definitely appreciate these tools.

To download an order form for a demo version of CEDRA-AVcad with Tutorial Manual click on the link. Once the order form has been downloaded, fill-in the requested information at the bottom of the form and then fax, e-mail or mail the order form back to The CEDRA Corporation. To see what's included in the demo version of the software click here CEDRA Demo Pack Information.

Those interested in a lot more functionality for just a little more expense should check out the CEDRA-AGsuite software package.

Click on this link for a color brochure, which can be viewed and/or printed with Adobe Acrobat® ReaderTM.

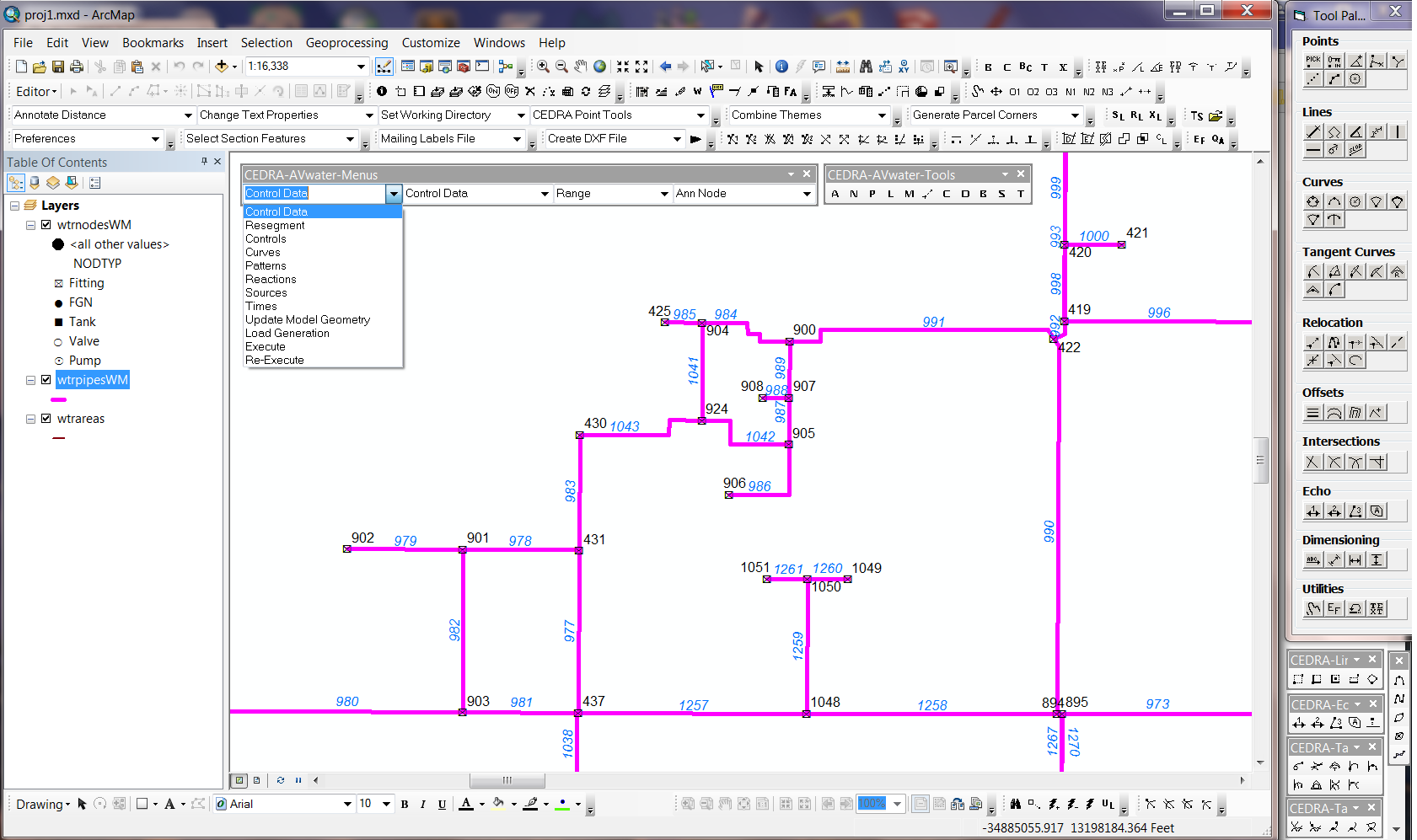

CEDRA-AVwater being used to create and maintain an EPANET water model

CEDRA AVwaterTM

CEDRA AVwaterTM is fully compatible with Versions 3.0, 3.1, 3.2 and 3.3 of ArcView® GIS and Versions 9.3, 10.0, 10.1, 10.2, 10.3, 10.4, 10.5, 10.6 and 10.7 of ArcGIS®.

CEDRA AVwaterTM provides the following functionality:

Building the database from within AVwaterTM

  • Define the geometric configuration (pressure zones, nodes and pipes):
    • in an interactive graphics environment, or
    • by importing:
      • node and pipe shapefiles,
      • an Arc/Info coverage,
      • a CAD drawing, or
      • an existing water model (see below) followed by using a
      • Wizard to establish the model from the imported data.
  • Establish the materials inventory.
  • Define Nodal contributing load polygons.
  • Introduce supply and demand loads with:
    • Direct flow rates (inflows, outflows and fire flows).
    • Land parcel and/or building foot print polygon association.
  • Support of a variety of coordinate systems such as State Plane, UTM, latitudes-longitudes, etc.
  • Ability to specify measures in feet, meters, varas, chains, rods, etc.
  • Ability to create, edit and maintain attribute data with the CEDRA-DataEditorTM extension.
  • Ability to automatically assign sequential node/pipe numbers for optimum modeling performance.

Geometric functionality

  • Includes and expands CEDRA AVcadTM.
  • Automatic polygon creation using auto-search (tracing) functionality.
  • Individual point, line, circular arc and spiral definition.
  • Point and line traversing.
  • Tangent line and curve generation.
  • Ability to insert, delete and relocate vertices of a polyline or polygon.
  • Specification of angles in decimal or degrees/minutes/seconds form.
  • Specification of angles as an Azimuth, Bearing or Cartesian direction.
  • Point Snapping across themes.

Database query and editing

  • Hydraulic computational results.
  • Inventory features.
  • Operational and historic data.
  • Maintain inventory and hydraulic attributes.
  • Precise geometric location.
  • Ability to break a pipe.
  • Ability to change a node type, for example, a valve to a fitting or a pump to tank.
  • Network re-segmentation into smaller nets.
  • Supply and demand data.
  • Interactively edit node and pipe attributes.

Hydraulic and water quality modeling

  • Static and extended period simulations using EPANET.
  • Multiple Pressure Zones with ability to turn pumps on and off.
  • Fire flow analysis with ability to create a summary table that contains the:
    • node computational results for each fire flow load case.
    • pipe computational results for each fire flow load case.
  • Compute demands based upon Land Use polygons and Consumption factors.
  • Storage tanks and pumps.
  • Pressure regulating/sustaining valves.
  • Open/close valve settings.
  • Water quality modeling using the EPANET interface accounting for:
    • chemical concentration,
    • water age, or
    • fraction of water originating from a specified node.
  • EPANET Versions 1 and 2 interfaces with the ability to model an unlimited number of pipes.
  • EPANET Version 2.00.12 supported.
  • Ability to create when using the EPANET modeler an:
    • EPANET input file (.inp).
    • EPANET map file (.map) containing node coordinates.

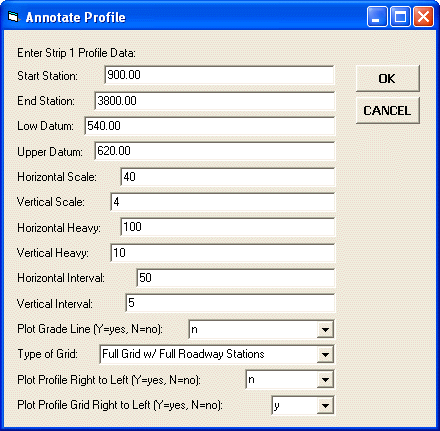

  • Ability to produce fully annotated profiles with customized parameter settings with the ability of:
    • specifying desired horizontal and vertical scales,
    • specifying desired grid lower and upper datum values,
    • specifying desired starting and ending station values,
    • specifying desired horizontal and vertical intermediate and heavy grid line intervals,
    • including the grade lines, and
    • specifying whether the profile is to be drawn in a left to right or right to left direction.
  • Ability to produce fully annotated profiles for report and plan and profile inclusion.
  • Ability to produce a EPS summary report file containing the following:
    • the overall minimum value encountered and the associated node/pipe with the value,
    • the overall maximum value encountered and the associated node/pipe with the value,
    • for each time step in the sumulation, the minimum value and associated node/pipe with the value,
    • for each time step in the sumulation, the maximum value and associated node/pipe with the value.

Importing functionality

  • Existing EPANET Model when the files below are available:
    • EPANET input file (.inp).
    • EPANET map file (.map) containing node coordinates.
  • Cybernet model by generating node and pipe shapefiles from within Cybernet.
  • dBase, Info, SDE and ASCII files may be directly read.
  • Access, Paradox, FoxPro, Oracle, Sybase, Informix, DB2, Ingres by:
    • Exporting to dBase or ASCII for direct reading or,
    • accessing through ODBC - Open Database Connectivity.
  • any ODBC/SQL-compliant database.
  • Import of PC Arc/Info coverages, Arc/Info coverages and libraries.
  • Direct reading of Shapefiles.
  • DXF, DWG, DGN and CEDRA CAD drawings.
  • VPF, MapInfo, Atlas GIS and ASCII map data.
  • Ability to have comments within the ASCII files that are processed for mass importing.
  • Ability to mass import polygons from an ASCII file.

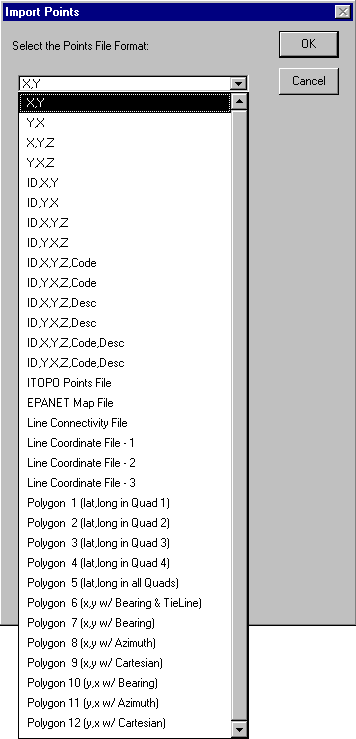

  • Ability to mass import points in a variety of formats from an ASCII file.
  • Ability to mass import lines that are defined by node numbers from an ASCII file.
  • Ability to mass import polylines that are defined by a line ID value and vertex coordinates from an ASCII file.
  • Ability to import a CEDRA "COGO" file which is an ASCII file that allows the user to mass import:
    • Lines given a direction and a distance.
    • Polygons given a direction and a distance for each course (side) comprising the polygon. The polygons may also contain curves (simple, compound and reverse) rather than just straight line sides.
    • Non-Tangent Curves given a chord direction, a chord length and a radius.
    • Tangent Curves given a chord length and a radius.
    • Tangent Curves given an arc length and a radius.
    • Tangent Curves given a central angle and a radius.
  • Ability to display the following raster file formats:
    • TIFF (.tif files).
    • ERDAS (Rev 7.3 and 7.4 .lan and .gis files).
    • IMAGINE (.img files).
    • BSQ, BIL and BIP.
    • Sun Rasterfiles (.rs, .ras, and .sun files).
    • BMP.
    • JPEG (.jpg files).
    • IMAGINE (.img files).
    • Arc/Info GRID.
    • RLC (Run-Length Compressed format).

Exporting functionality

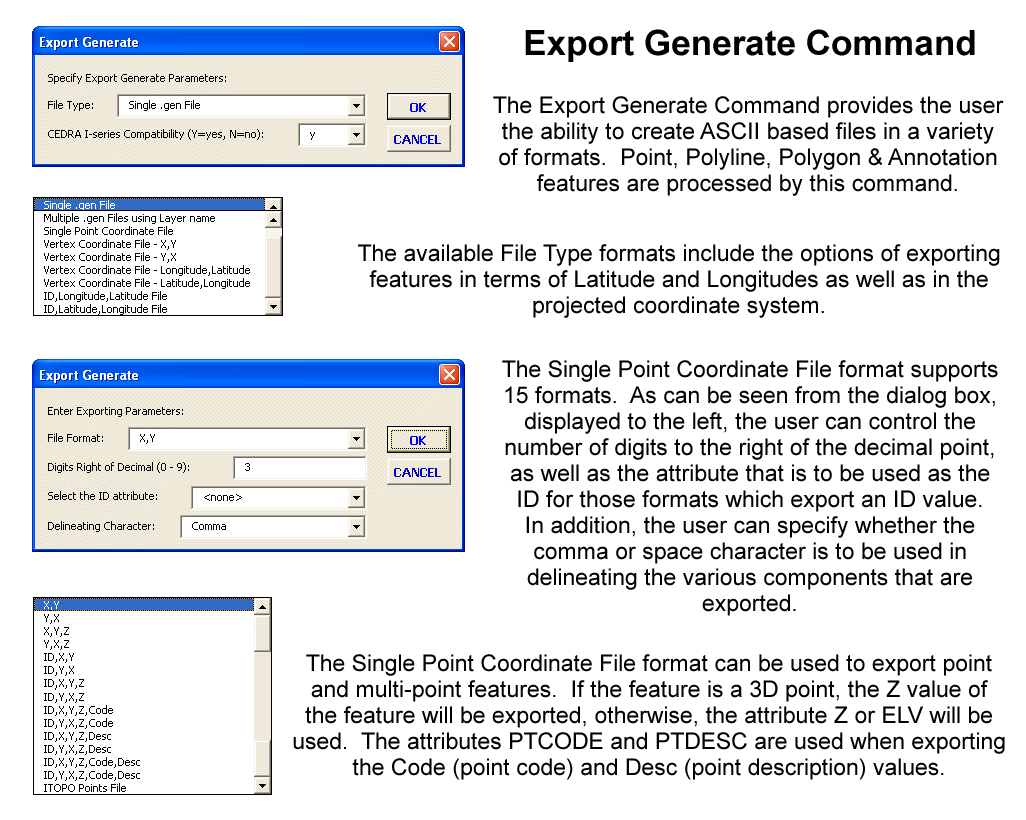

  • Ability to export features (points, lines, polygons and annotation) as an Arc/Info Generate File.
    • In the form of a single Generate file, or
    • As multiple Generate files using the layer name as the name of the file.
  • Ability to export features (points, lines and polygons) in the form of a Vertex Coordinate File.
    • In the form of X,Y coordinates,
    • In the form of North,East coordinates,
    • In the form of Longitude,Latitude coordinates, or
    • In the form of Latitude,Longitude coordinates.
  • Ability to export features (points, and multi-points) in a variety of ASCII based formats.
  • Ability to export features (points, lines, polygons and annotation) in the form of a DXF File.
  • Ability to export features (polylines and polygons) adhering to the Traverse File Format.

Graphic display and/or reports

  • Hydraulic and quality charts and tables.
  • Extended Period Simulation graphs for EPANET models.
  • Pressure, Grade Line, Flow and Velocity contours.
  • Conduit and energy grade line profiles.
  • Flow arrow generation.
  • Annotation of pipes and nodes.
  • CAD functionality.
  • Advance or return to previous views.
  • Ability to save and assign a name to an unlimited number of views.
  • Ability to return to a previous view by specifying a view name.
  • Ability to zoom in or out of a view by specifying a scale factor.
  • Individual and global text scaling.
  • Individual and global text editing.
  • Viewing of ASCII based files.
  • Customized selection tools for ArcGIS users.

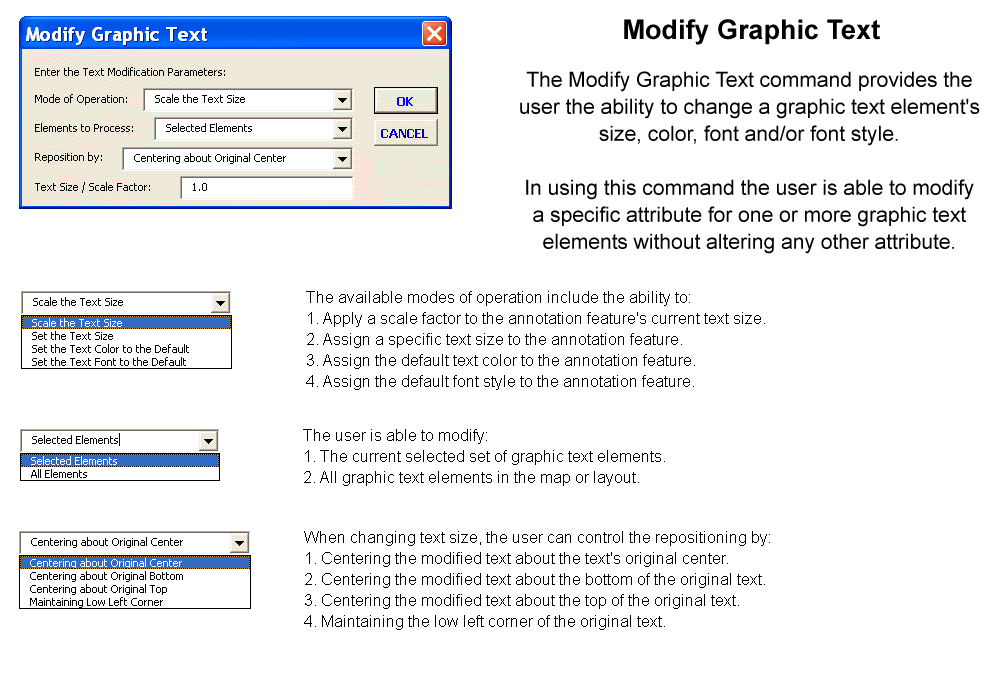

  • Ability to modify a specific attribute of one or more graphic text elements without altering any of their other attributes.

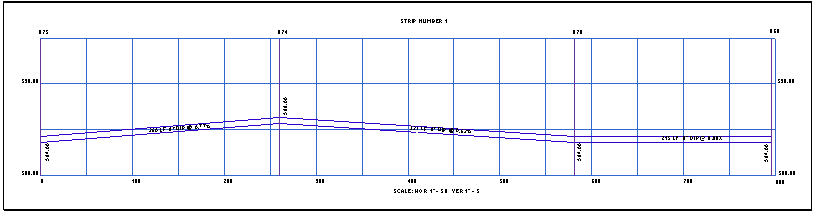

Profile of Selected Pipes with Pipe Length and Slope Annotation

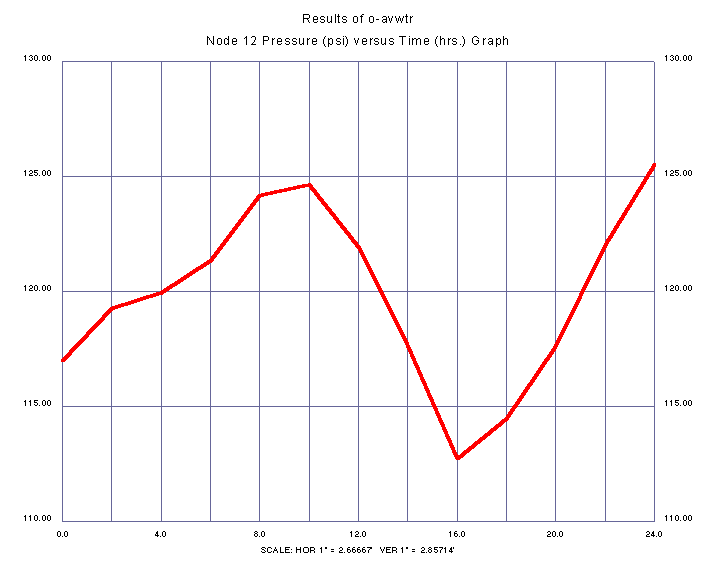

EPS Time Related Graph of Pressure versus Time

Printing Capability for ArcGIS

ArcGIS® users have the ability to print the active data frame using the Print Data Frame command, which is available in the CEDRA-DataFrame-Tools toolbar. The Print Data Frame command differs from conventional ArcGIS printing in that the user is able to control: (a) the map scale, (b) the map area to be printed, (c) the location of the map on the paper and (d) optionally, whether a data frame, which contains a map sheet border, should be included or not in the map.

As most ArcMap users have realized, within an ArcMap document file (.mxd) all data frames share the same layout. This causes the difficulty of when the layout view is activated all of the data frames in the document file appear in the layout, which for some applications is not what the user wants. The Print Data Frame command will print the active data frame, from data or layout view, ensuring that: (a) the desired map scale is preserved, and (b) all other data frames do not appear on the plot. This is achieved by programmatically positioning all data frames, other than the active data frame, in the document file outside of the user specified sheet limits (Paper Size parameters). In so doing, when the layout view is activated the only data frame that appears in the layout view is the active data frame.

This capability allows the user to have a single document file that contains many data frames with each data frame containing a complete drawing sheet. Without the Print Data Frame command the user would have to: (a) create separate document files for each drawing sheet or (b) manually reposition all data frames, other than the active data frame, outside of the sheet limits.

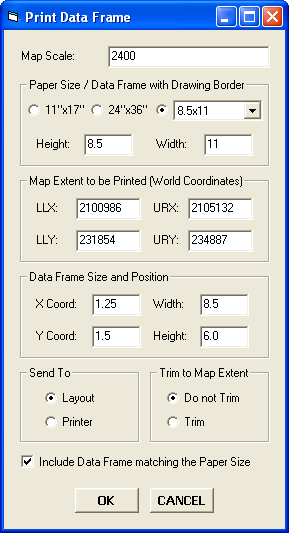

Data Frame Printing Dialog Box

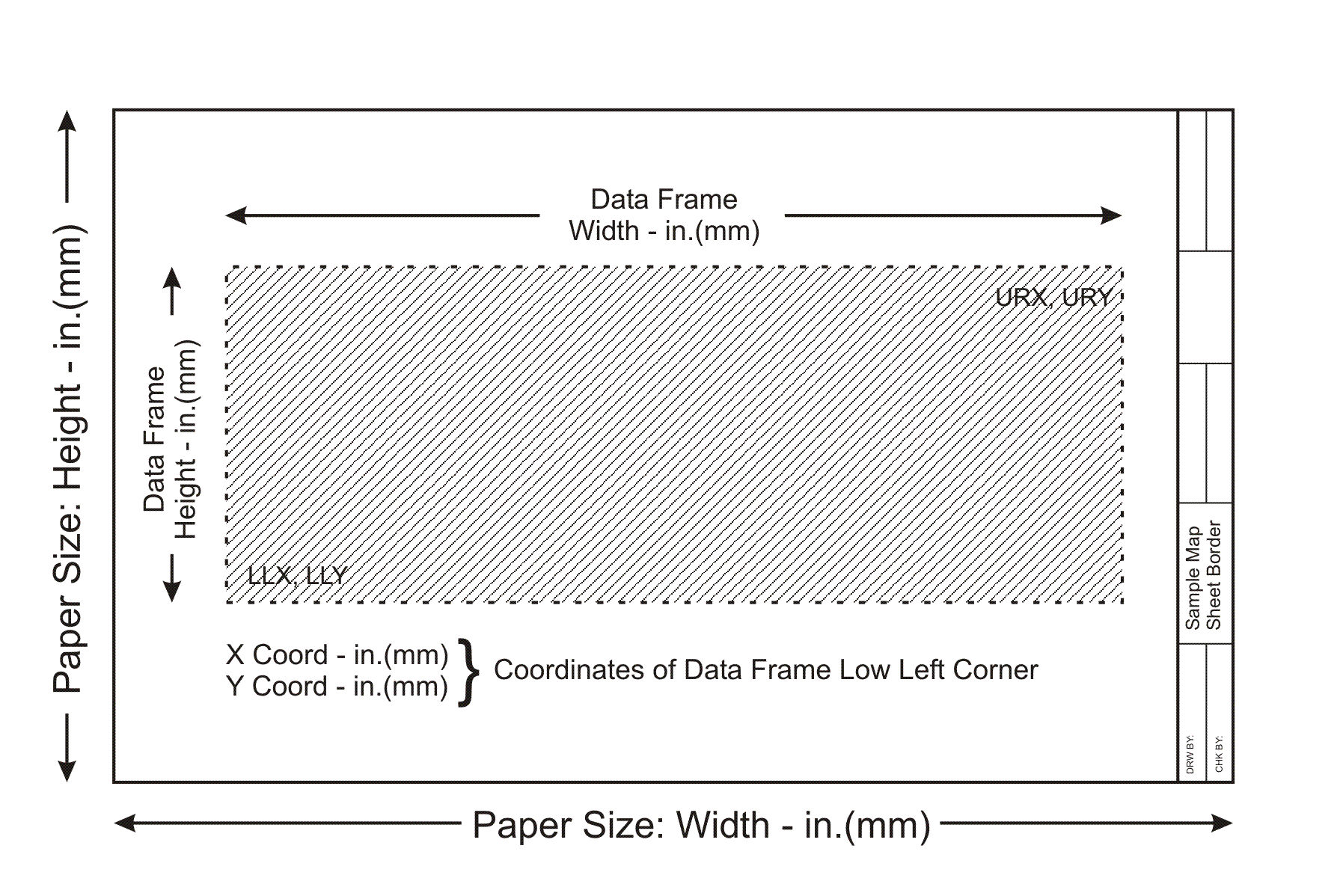

Positioning of the Active Data Frame on a Map Sheet Border

In addition, users have the ability to operate in another mode of map preparation. The first mode, which was described above, is when a single data frame contains the entire map to be printed. The second mode is where one data frame contains the map contents, while another data frame contains the map border (title block, sheet border, etc.).

The Print Data Frame command accommodates this scenario by providing the Include Data Frame matching the Paper Size option. When this option is checked the Print Data Frame command will position the active data frame according to the specifications in the Data Frame Size and Position parameters area and will include in the plot the data frame whose name is either 11"x17", 24"x36" or Custom, depending upon which Paper Size is active. This approach enables the user to create a single map border, placing it in a data frame using one of the following; 11"x17", 24"x36" or Custom as the name of the data frame, and generate multiple maps without having to load the map border into multiple data frames.

DXF Export Capability for ArcView GIS and ArcGIS

ArcView® GIS and ArcGIS® users have the ability to create a DXF file, from within ArcView 3.x or ArcMap, for all visible features in the current map. Unlike other DXF export utilities, which process only one theme at a time, the CEDRA DxfExportTM extension processes all visible themes (shapefiles, personal geodatabases, enterprise geodatabases and coverages) in the current map. In addition, the CEDRA DxfExport utility will process annotation features and graphic text elements. As such, a DXF file created by this utility can include features and text. In processing the visible layers in the map:

  • If a theme has selected features then only the selected features will be processed, if there are no selected features then all features in the theme will be processed, this includes point, polyline and polygon features. If the option Export Features displayed in the Current Extent is selected then all visible features in the current view will be exported regardless of the feature's selection state.
  • If a theme has labels, the labels will need to be converted into annotation, using the Convert Labels to Annotation... command, in order for the labels to be exported. The labels that are converted can be stored either in a personal geodatabase or in the map, depending upon the user's preference.
  • If there are selected MARKER, PEN, FILL and/or TEXT graphic elements then these graphic elements will be processed (if the user desires). If the view does not contain any selected graphic elements then no graphic elements will be processed. In exporting graphic elements note the following:
    • All of the selected Marker elements will be placed in a layer called GrapMrkr,
    • All of the selected Pen elements will be placed in a layer called GrapPen,
    • All of the selected Fill elements will be placed in a layer called GrapFill, and
    • All of the selected Graphic Text elements will be placed in a layer called GrapText.
  • The name of the theme will serve as the name of a layer in the DXF file.
  • Non-alphanumeric characters in a theme name are converted to the underscore character (_).
  • The user has the ability to select one or more attributes, from a choice box that appears in the Create DXF File dialog box, for inclusion in the DXF file, if desired. When exporting attributes, the selected attributes will appear as "blocks" in the DXF file. These blocks will appear at the midpoint of the feature and the name of the block will be B_xxxx, where xxxx denotes the name of the layer the feature resides in. All of the attributes associated with the block will be listed vertically, one under the other. The ability to export attributes is important because: (a) it enables the user to transfer non-graphic information (attributes) into the DXF file, maintaining the association of the non-graphic information with the feature and (b) provides a mechanism for the user to maintain symbology and line styles. Regarding the latter, symbology and line styles, in the GIS classifications are based upon attributes, by exporting the attributes which the classifications are based upon, the user has the ability to regenerate the classifications in the system in which the DXF file is being read into. This, of course, is dependent upon the software which is reading the DXF file, that it has the ability to change symbology and line style using information that is stored in a "block".

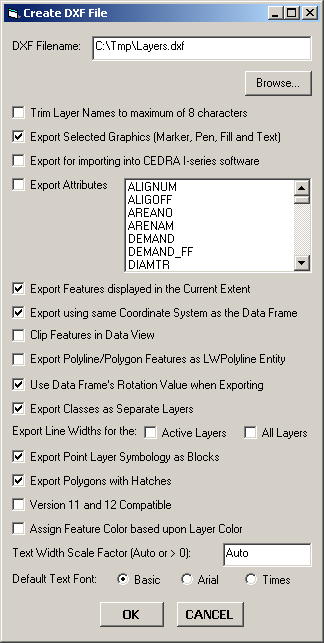

ArcMap - CEDRA-DxfExport Dialog Box

As can be seen by examining the dialog box above, the user is able to:

  • Control the name of the DXF file that is created. The Browse... button enables the user to use a standard file navigation dialog box to control the folder where the DXF file will be written to, as well as the name of the DXF file.
  • Specify whether the theme names are to be trimmed to 8 characters or not. If a check appears in the square to the left of this parameter, the names of the visible themes that are processed will be trimmed to a maximum of 8 characters. The first 8 characters of the theme name will be used.
  • Specify whether selected graphic elements are to be included in the DXF file creation. If a check appears in the square to the left of this parameter any graphic elements that are selected will be included in the creation of the DXF file.
  • Specify whether a DXF file for importing into the CEDRA I-series software is to be created or not.
  • Specify which attributes if any are to be included in the DXF file as "blocks". If a check appears in the square to the left of this parameter all attributes which are selected in the choice box will be included in the DXF file as "blocks". There is no limit to the number of attributes that can be selected, and
  • Specify whether the visible features in the current extent (view) are to be processed. If a check appears in the square to the left of this parameter then the only features that will be exported will be the visible features in the current extent, regardless of their selection state. In addition, if the Export Selected Graphics (Marker, Pen, Fill and Text) option is selected, all Marker, Pen, Fill and Graphic Text elements in the visible annotation group layers which are within the current extent will be exported, regardless of their selection state. The name of the annotation group layer will serve as the name of the layer these graphic elements are placed in.
  • Specify whether the data that is exported is to appear in the same coordinate system as the current view (data frame) or not. If this option is not checked, the data that is exported will be in the coordinate system of the theme's (layer's) source data. If this option is checked, all data that is exported will be in the same coordinate system as currently displayed in the data frame.
  • Specify whether features are to be clipped to the current map display extent when exporting from Data View. If this option is not checked, if any portion of a feature falls within the current map display extent, the entire feature will be exported. If this option is checked, the feature will be clipped to the current map display extent prior to exporting.
  • Specify whether polyline and polygon features are to be exported as LWPolyline AutoCAD entities. If this option is checked, all polyline and polygon features will be exported as a LWPolyline entity, rather than a Polyline or Polygon entity. If a polyline forms a closed figure then a closed LWPolyline entity will be exported.

ArcView 3.x Tools for ArcGIS

ArcGIS users who have worked with ArcView GIS will notice that the commands shown below: (a) do not operate the same in ArcMap as they did in ArcView or (b) are just not a part of core ArcGIS. These commands did not provide GIS functionality but they were an essential part of how ArcView GIS users operated in the ArcView 3.x environment. To ease the transition to ArcGIS, CEDRA's ArcGIS based software includes the CEDRA-ArcView3 Tools toolbar. This toolbar enables ArcGIS users to interact with ArcMap in a manner similar to how ArcView GIS users operated in the ArcView 3.x environment. For users who have never worked with ArcView GIS, these tools provide an easier and more flexible means of interacting with the map.

CEDRA-ArcView3 Tools toolbar

Functionality offered in the CEDRA-ArcView3 Tools toolbar

  • Identify features from the active layers in the Table of Contents.
  • Select features from the active layers in the Table of Contents.
  • De-select or clear the selected features from the active layers in the Table of Contents.
  • Zoom to the extent of all layers in the Table of Contents.
  • Zoom to the extent of the active layers in the Table of Contents.
  • Zoom to the extent of the selected features in the active layers in the Table of Contents.
  • Make all layers in the Table of Contents visible.
  • Make all layers in the Table of Contents invisible.
  • Delete the selected features in the map with a single click eliminating the need to (a) start the Editor, (b) select the appropriate dataset and (c) select the delete command.
  • Delete a group of vertices in a selected polyline or polygon feature by defining a rectangle that encloses the vertices to be deleted.
  • Open the attribute table for the selected layer(s) and/or table(s).
  • Switch or reverse the selection set for the selected layer(s) and/or table(s).
  • Set the current active layer (Target Layer) by picking the desired layer from an alphabetically sorted list of layer names and clicking the OK button.

To download a color brochure, which can be viewed and/or printed with Adobe Acrobat® ReaderTM, click on the following link CEDRA Software Information.

CEDRA-AVwater is licensed as per the terms of the CEDRA Software License Agreement.
